- 4 inch
- HOME > Generator / Water Pump > Gasoline water pump

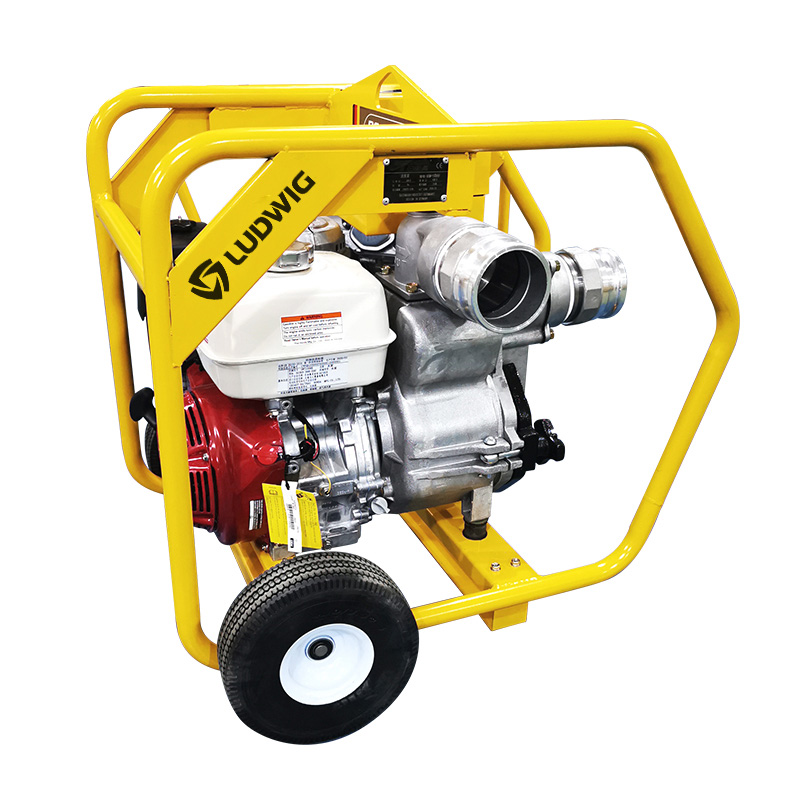

4 inch
- Product details
USING RANGE
Flood control and drainage
Pond drainage
fisheries water supply
farming and pastoral irrigation
reservoir pumping
garden watering
PRODUCT FEATURE
1.Self-priming high performance pump can handle solids up to 50mm in diameter,Ideal for construction sites where dehydration is needed quickly and reliably.
2.Durable nodular cast iron impeller and volute and patented volute Inserts, to create a rugged, easy to maintain sewage pump, available in the construction site operates longer.
3.Adopt threaded mixed impeller design to improve its capacity and head. Thus improving
the performance of the pump.
4.Heavy duty frame with central lifting point with inflatable tire for both pump and
The engine provides protection and is easy to transport.
5.Mechanical seals operate in an oil bath, thus reducing maintenance costs and
Provides protection to seals during dry operation.
SPECIFICATIONS
Flood control and drainage
Pond drainage
fisheries water supply
farming and pastoral irrigation
reservoir pumping
garden watering
PRODUCT FEATURE
1.Self-priming high performance pump can handle solids up to 50mm in diameter,Ideal for construction sites where dehydration is needed quickly and reliably.
2.Durable nodular cast iron impeller and volute and patented volute Inserts, to create a rugged, easy to maintain sewage pump, available in the construction site operates longer.
3.Adopt threaded mixed impeller design to improve its capacity and head. Thus improving
the performance of the pump.
4.Heavy duty frame with central lifting point with inflatable tire for both pump and
The engine provides protection and is easy to transport.
5.Mechanical seals operate in an oil bath, thus reducing maintenance costs and
Provides protection to seals during dry operation.
SPECIFICATIONS
| 4 INCH GASOLINE SLURRY PUMP | |
| Suction 、Discharge Port Diameter | 100(4〃) |
| Max lift head | 24m |
| Max Suction Head | 8m |
| Max flow | 2000L/min |
| through particle diameter | 31mm |
| Engine option | LUDWIG HONDA BRIGGS&STRATTON YAMAHA |
| Net weight | 67kg |
