- GE230V/GE400V
- HOME > Construction Machinery > Floor heat milling machine

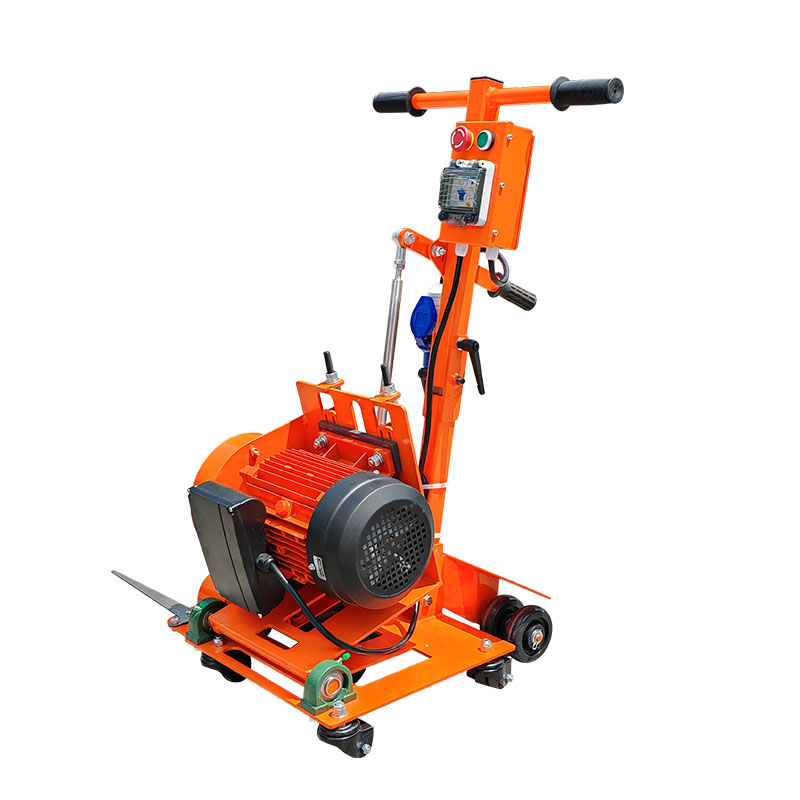

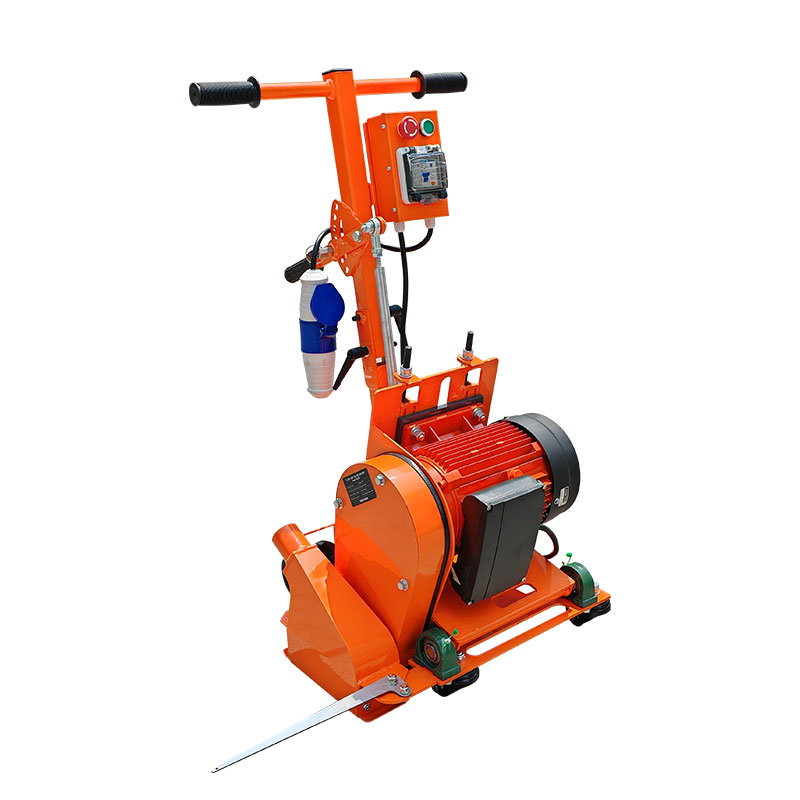

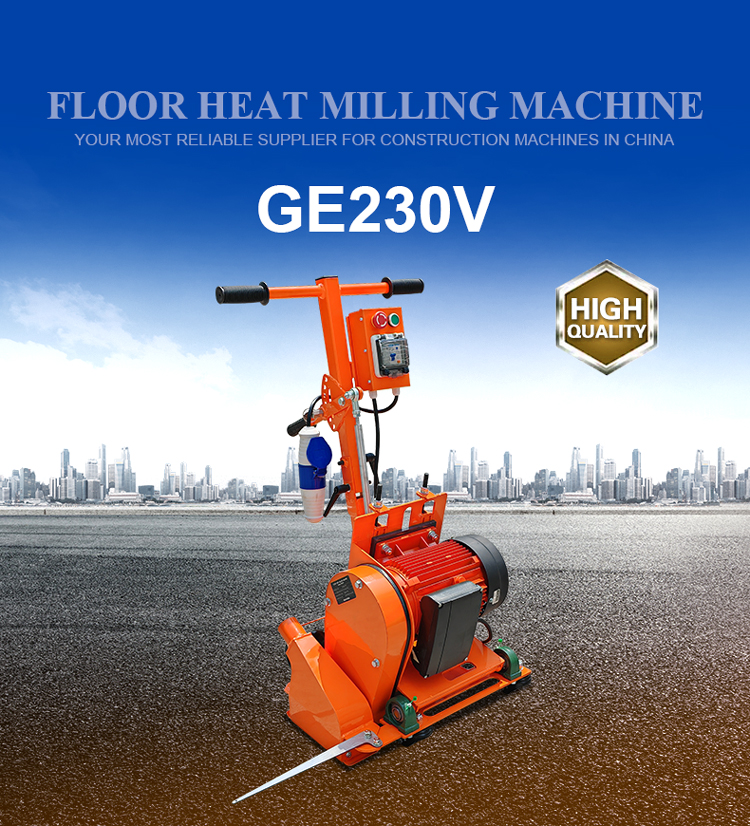

GE230V/GE400V
- Product details

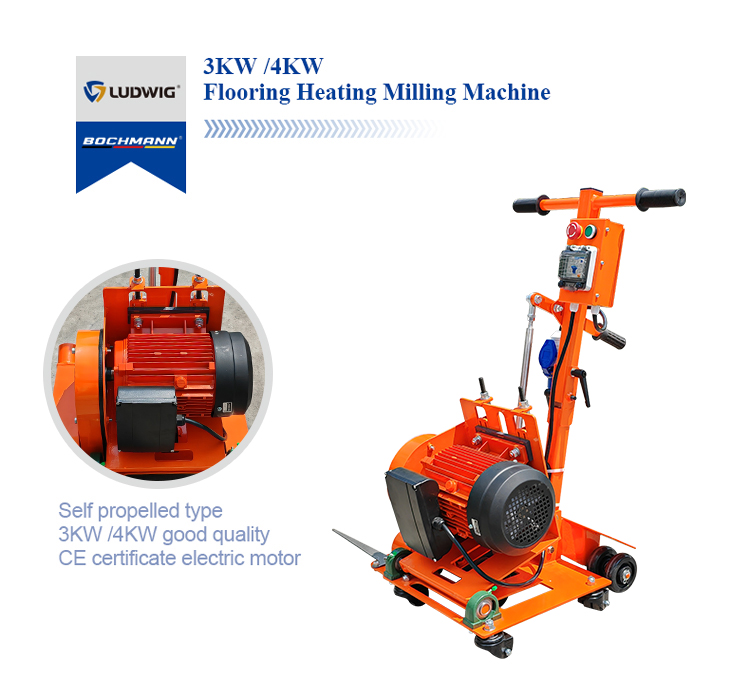

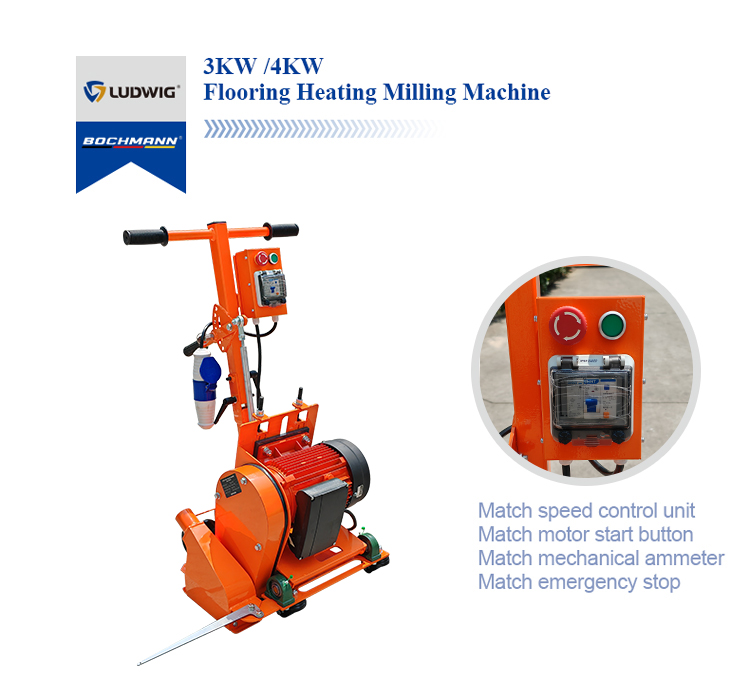

1.3KW /4KW good quality electric motor.
2.Designed for the retrofitting of underfloor heating systems.

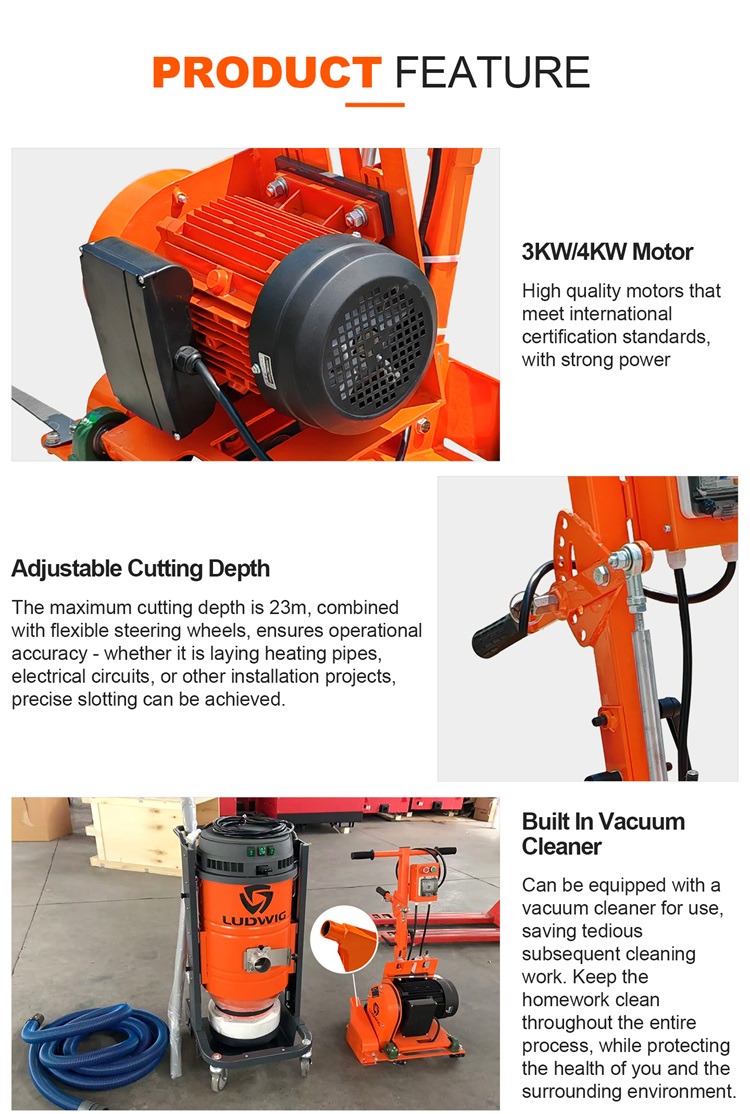

3.Precise cutting depth adjustment.
4.Integrated dust extraction for absolutely dust-free work.
5.Swivel wheels for precise guiding of the machine.
6.Minimum radius 60mm.
7.Models GE230V/GE400V are of the hand-pushed type,

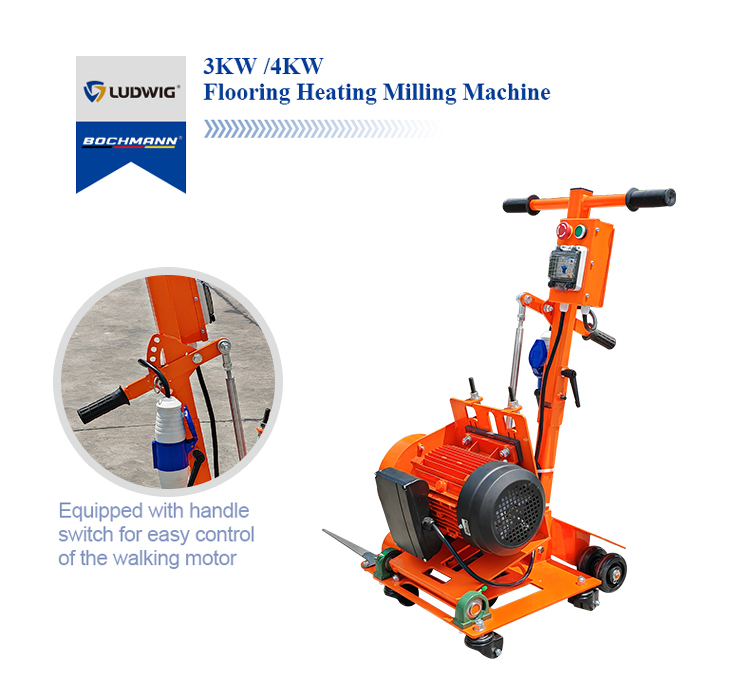

8.Models GESP 230V/GESP 400V models are of the self-propelled type by electric motor.
2.Designed for the retrofitting of underfloor heating systems.
3.Precise cutting depth adjustment.
4.Integrated dust extraction for absolutely dust-free work.
5.Swivel wheels for precise guiding of the machine.
6.Minimum radius 60mm.
7.Models GE230V/GE400V are of the hand-pushed type,
8.Models GESP 230V/GESP 400V models are of the self-propelled type by electric motor.
| MODEL | GE230V | GESP230V | GE400V | GESP400V |
| Engine type | Electric motor | Electric motor | Electric motor | Electric motor |
| Maximum power of milling motor | 3.0 KW, 230V | 3.0kW, 230V,50Hz | 4.0 KW, 400V | 4.0 KW, 400V |
| Maximum power of drive motor | - | 0.44kW @ 230V, 50Hz | - | 0.44kW @ 230V, 50Hz |

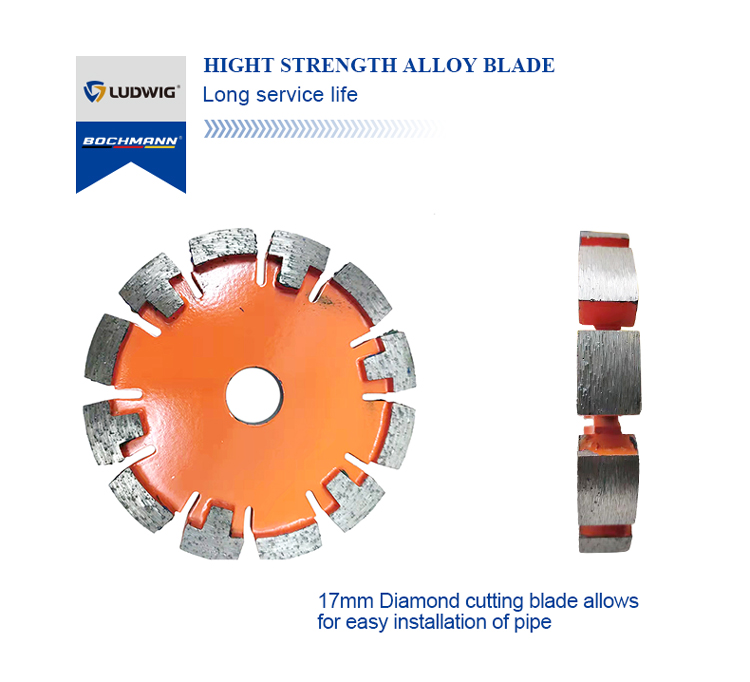

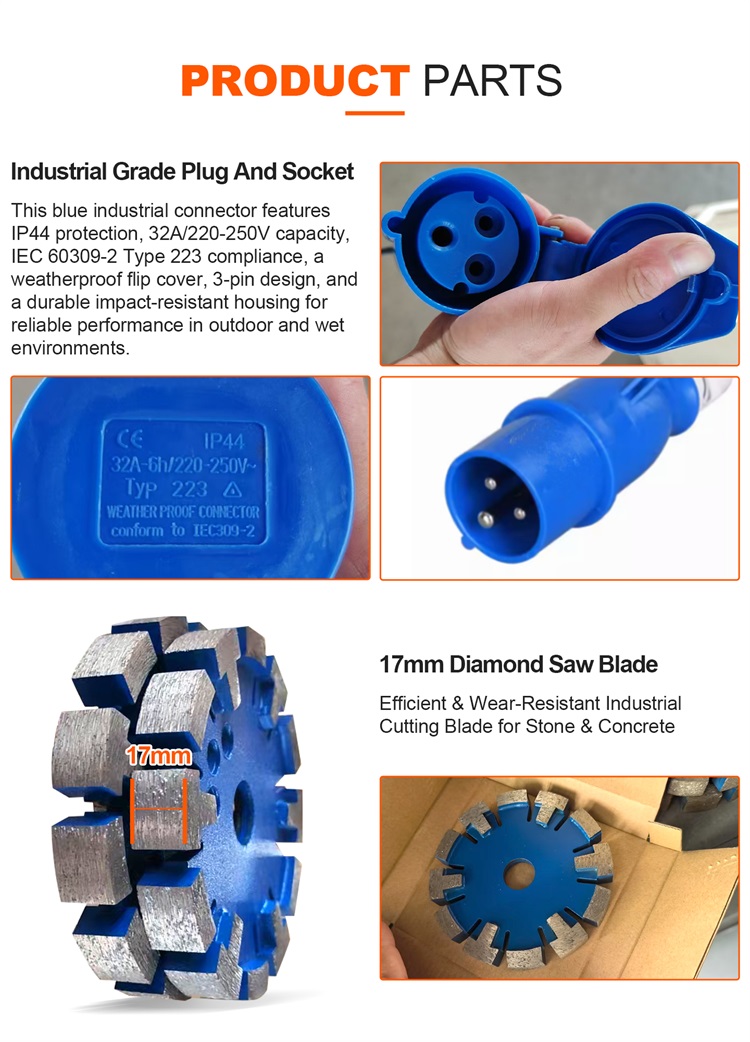

| Diamond wheel | 120mm | 120mm | 120mm | 120mm |
| Slit width | 16 or 17.3mm | 16 or 17.3mm | 16 or 17.3mm | 16 or 17.3mm |
| Max. Cutting depth | 25mm | 25mm | 25mm | 25mm |
| Bore | 22.2mm | 22.2mm | 22.2mm | 22.2mm |
| Wall distance | Aprrox. 10cm | Aprrox. 12cm | Aprrox. 10cm | Aprrox. 12cm |
| Driving style | self-propelled | Self-propelled by electric motor | self-propelled | Self-propelled by electric motor |
| Weight | 70kg | 87kg | 77kg | 92kg |
