Vibrating Head

Eccentric oversized steel and steel end.
5 different diameters of vibrating heads, totally interchangeable.
Double seal prevents the entrance of lubricants.
Flexible Shaft
Standard length from 1.5 to 2.5 meters.
Strengthening with metallic mesh.
Transmission shafts with reinforced ends, provide higher resistance to
those points where the transmission shaft must withstand more intense bending.

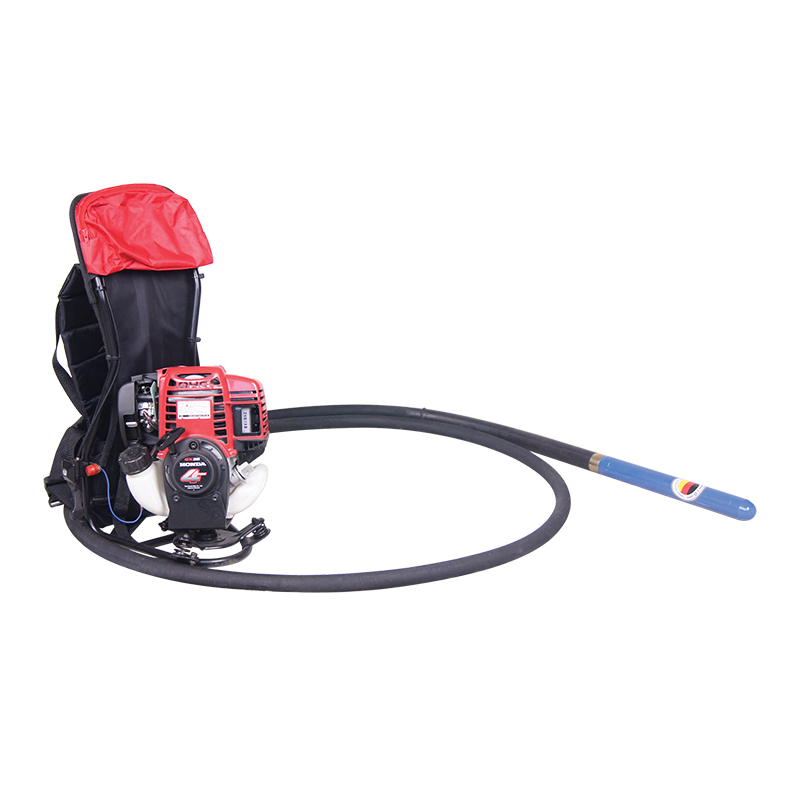

Model	GPV38H (put on back)
Engine	honda GX35 1.5HP
Engine type	35cc mini 4stroke OHC air-cooled
Vibration rod dia mm	38
Engine speed rpm	6500
Vibration frequency vib/min	9000
Rope length m	3
Packing weight kg	13
Packing dimension (L*W*H) mm	600×350×350&750×750×55
